Comparison of price for color steel plate and eps panels in factory building

Choosing the right wall and roof materials is crucial when building or renovating a factory building. Color steel plate and EPS panels are two of the most commonly used materials in industrial buildings. This article will provide a concise and clear comparative analysis based on price, performance, and current industry trends.

I. Material Definitions

Color Steel Plate (Single-layer Sheet): Refers to a single-layer color-coated steel sheet, typically 0.3–1.0 mm thick. It needs to be attached to a purlin system and does not have an insulation layer itself.

EPS Sandwich Panel: Composed of two layers of color-coated steel sheets with an interlayer of polystyrene foam (EPS), it combines structural, insulation, and decorative functions.

II. Price Comparison

Note: Prices are affected by the base price of steel, coating type (PE/SMP/PVDF), foam density, and regional tariffs.

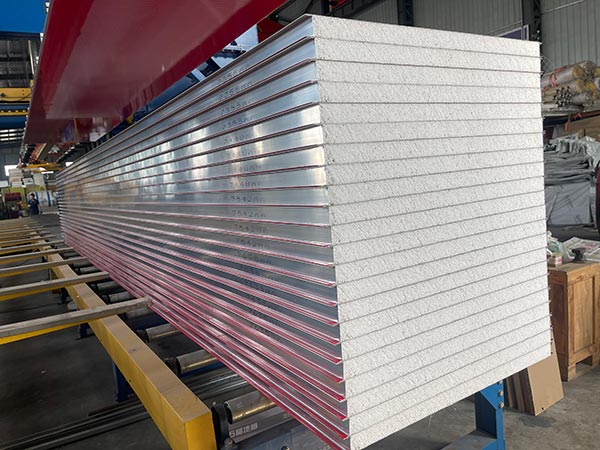

eps panels

III. Comprehensive Cost Analysis

Although the unit price of single-panel materials is lower, the actual cost of a complete enclosure system must be considered in factory building:

Corrugated Steel Plate System: Requires additional purlins (approximately $3–$5/m²), insulation (such as glass wool, approximately $4–$8/m²), and a moisture barrier, ultimately resulting in a system cost of $12–$25 per square meter.

EPS Sandwich Panel System: Direct installation, no additional insulation layer required. Purlin usage is comparable to single-panel systems, with a total system cost of approximately $15–$30/m².

Note: When the factory requires insulation, the cost difference between the two options narrows, and EPS panels may even be more economical. If insulation is not required, the single-panel solution is significantly cheaper.

IV. Current Industry Trends

Raw Material Price Fluctuations:

• Steel: Affected by global iron ore and energy prices, corrugated steel plate prices are expected to rise in 2025.
• EPS: Fluctuations in crude oil prices lead to unstable EPS bubble costs, but the production process is mature, and the price increase is usually lower than that of steel plates.

Fire Prevention and Environmental Regulations

Many regions globally (such as Southeast Asia and the Middle East) are tightening fire safety standards for factory building, highlighting the flammability (B3 grade) of EPS core materials. Some insurance companies are raising premiums or refusing coverage.

While color steel plate themselves are non-combustible, insulation requires the use of Class A materials such as rock wool, significantly increasing overall costs.

Construction Efficiency

EPS panels offer faster installation, reducing labor costs; single-sheet + insulation layer construction involves more steps and a longer timeframe.

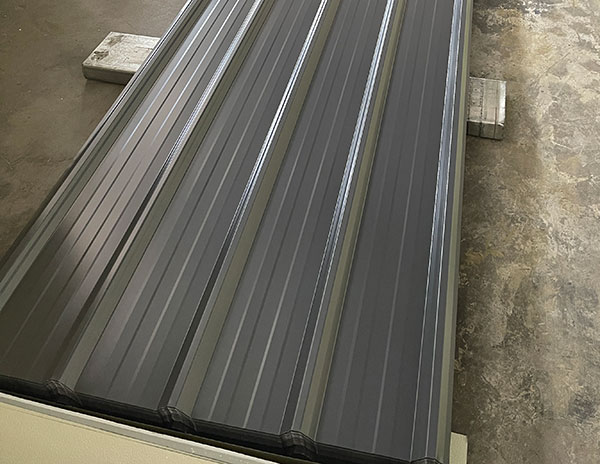

color steel plate

V. Selection Recommendations

Prioritize Color-coated Steel Sheets:

• For extremely low budgets and factories without insulation requirements (e.g., simple warehouses, temporary sheds).
• For mild local climates or no internal temperature control requirements.

Prioritize EPS Sandwich Panels:

• For applications requiring insulation (e.g., cold storage, temperature-controlled workshops).
• For rapid construction and where local fire regulations permit the use of EPS (or improvements through fire-retardant coatings).

Careful evaluation is required:

If fire safety requirements are high but the budget is limited, consider a combination of single-layer panels and fire-resistant rock wool, or choose sandwich panels with a higher fire rating (such as rock wool sandwich panels, priced at approximately $20–$35/m²).

VI. Summary

Final recommendation: From a material unit price perspective, single-layer color steel sheets are significantly cheaper, but if insulation requirements are taken into account, EPS sandwich panels may be a more cost-effective option. A comprehensive decision must be made based on the actual needs of the project, local climate, and fire safety regulations.
